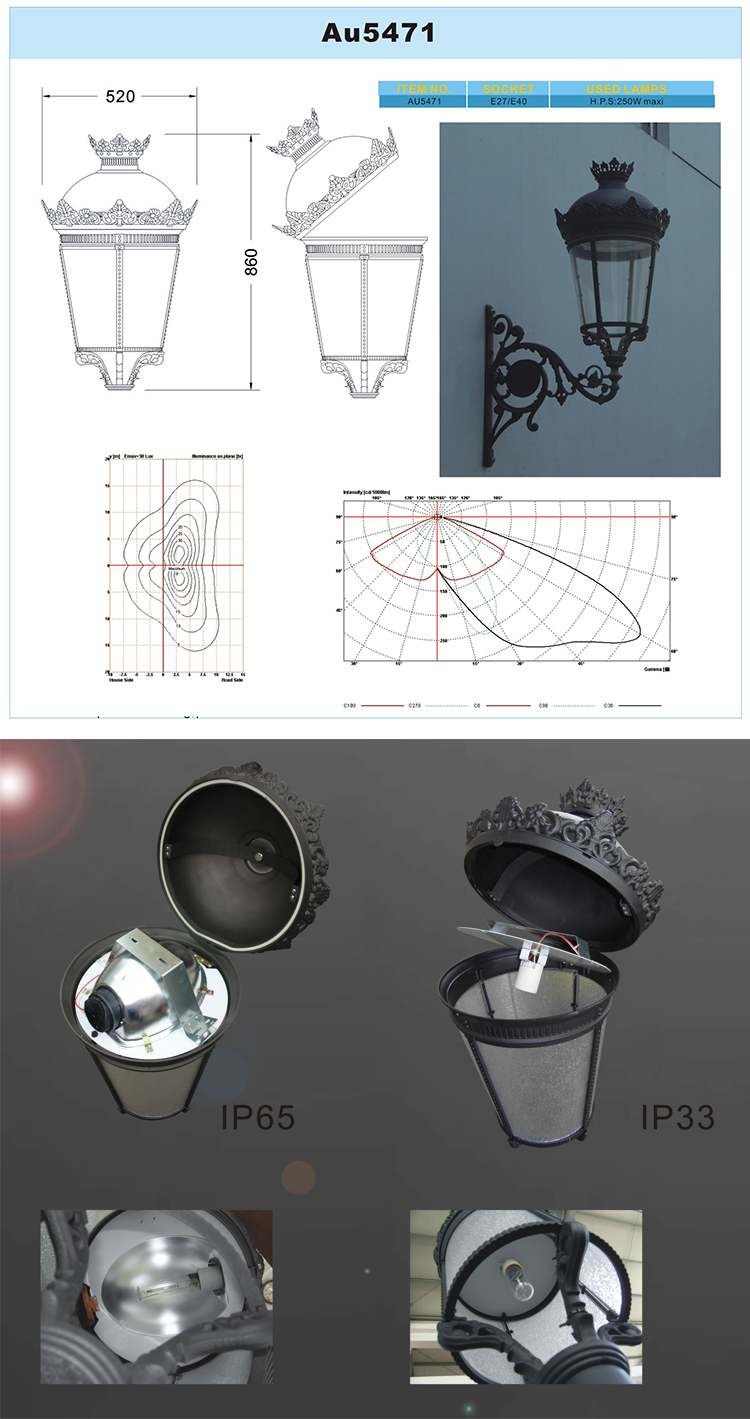

Item:Palacio Super 1

SERIES: AU5471
THE FINIAL TOP is made of cast aluminium.

THE DOME in pure aluminium sheet spun.

THE FRAME of the luminaire is made up

of 3 parts:

A ring in aluminium diecasting supported by

4 ribs in aluminium diecasting, fixed to the

base flange. Mounting for 26 held .

THE DIFFUSER is in forst polycarbonate .

THE BASE FLANGE in diecast aluminium.

mounting for 26mm.


THE OPTICAL BLOCK is make up of 3 parts

sealed together so as to obtain a high

degree of protction.

Painted by polyester powder.

PROTECTION DEGREE:

IP33, Optical block IP65 on request.

SOCKET TYPE: E27, E40.

Maxi: 250w



Item:Palacio Super 1

THE FINIAL TOP is made of cast aluminium.

THE DOME in pure aluminium sheet spun.

THE FRAME of the luminaire is made up

of 3 parts:

A ring in aluminium diecasting supported by

4 ribs in aluminium diecasting, fixed to the

base flange. Mounting for 26 held

THE DIFFUSER is in forst polycarbonate .

THE BASE FLANGE in cast aluminium.

mounting for 26mm.

THE OPTICAL BLOCK is make up of 3 parts

sealed together so as to obtain a high

degree of protction.

Painted by polyester powder.

PROTECTION DEGREE:

IP33, Optical block IP65 on request.

SOCKET TYPE: E27, E40.

Maxi: 250w



Features

WARRANTY: 5 years
LAB TESTED: National listing lab test in accordance with IES Standards
SOLID-STATE: High-Shock and High-Vibration Resistant
INSTANT-ON: Light turn on right away,without delay in Re-Stricke
APPLICATION: Main Road,Rural Road,Commercial Square,Garden,Villa
