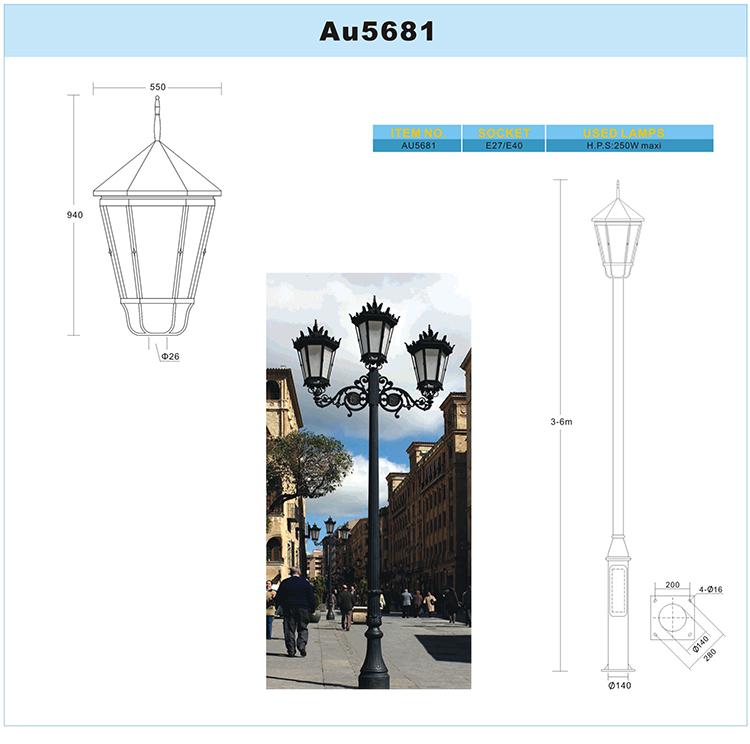

SERIES: AU5681 THE DOME in pure aluminium sheet welded. THE FRAME of the luminaire is made up of 3 parts: A ring in aluminium sheet supported by 6 ribs in aluminium piping, fixed to the base flange. Mounting for 26 held . THE DIFFUSER is in forst polycarbonate . THE BASE FLANGE in cast aluminium. mounting for 26mm. | THE OPTICAL BLOCK is make up of 3 parts sealed together so as to obtain a high degree of protction. Painted by polyester powder. PROTECTION DEGREE: IP33, Optical block IP65 on request. SOCKET TYPE: E27, E40. Maxi: 250w |
THE FINIAL TOP is made of cast aluminium.
THE DOME in pure aluminium sheet welded.
THE FRAME of the luminaire is made up
of A ring in aluminium sheet supported by
6 ribs in aluminium piping, fixed to the base
flange. Mounting for 26 held .
THE DIFFUSER is in forst polycarbonate .
THE BASE FLANGE in cast aluminium.
mounting for 26mm.
THE OPTICAL BLOCK is make up of 3 parts
sealed together so as to obtain a high
degree of protction.
Painted by polyester powder.
PROTECTION DEGREE:
IP33, Optical block IP65 on request.
SOCKET TYPE: E27, E40.
Maxi: 250w
WARRANTY: 5 years
LAB TESTED: National listing lab test in accordance with IES Standards
SOLID-STATE: High-Shock and High-Vibration Resistant
INSTANT-ON: Light turn on right away,without delay in Re-Stricke
APPLICATION: Main Road,Rural Road,Commercial Square,Garden,Villa
