Rayben1/AUA115B

Item:Rayben1

SERIES: AUA115B
MATERIAL: Aluminium body+PC lens
INPUT VOLTAGE: 120-277Vac
WORKING CURRENT: 700mA
POWER FACTOR:0.96
LED Q'TY: 16~48 pcs
TOTAL CONSUMPTION: 35~105w

EFFICACY: ≥125 lm/w

LED: Cree XPG3
BEAM PATTERN: A01, B01, C01, C02
COLOR RENDERING INDEX: More than 75

COLOR TEMP.: 3000K, 4000K, 5000K

MOUNTING DIA: 60mm

IP RATING: IP66
WORKING CONDITION:
TEMP.:-40℃~55℃ HUM.:10%~95%
LIFETIME: More than 50,000 hrs

Item:Rayben1

SERIES: AUA115B
MATERIAL: Aluminium body+PC lens
INPUT VOLTAGE: 120-277Vac
WORKING CURRENT: 700mA
POWER FACTOR:0.96
LED Q'TY: 16~48 pcs
TOTAL CONSUMPTION: 35~105w
EFFICACY: ≥125lm/w
LED: Cree XPG3
BEAM PATTERN: A01, B01, C01, C02
COLOR RENDERING INDEX: More than 75
COLOR TEMP.: 3000K, 4000K, 5000K
MOUNTING DIA: 60mm
IP RATING: IP66
WORKING CONDITION:
TEMP.:-40℃~55℃ HUM.:10%~95%
LIFETIME: More than 50,000 hrs

Features

WARRANTY: 5 years
POWER SAVING: At least 60% Energy Saving
LONG LIFE: Assigned LED's life cycle more than 50,000hrs(12hrs/day for about 10years)
HEAT DISSIPATION: Professional heat dissipation design, achieving optinum efficiency
MODULAR DESIGN: Free to change the LED module for different needs
LAB TESTED: National listing lab test in accordance with IES Standards
SOLID-STATE: High-Shock and High-Vibration Resistant
INSTANT-ON: Light turn on right away,without delay in Re-Stricke
HIGH CRI: 75 CRI enhances all original colors
APPLICATION: Main Road,Rural Road,Commercial Square,Garden,Villa

File Download

Luminaire Catalog

Luminaire Technical

Luminaire CAD Drawing

Luminaire IES File

Luminaire Video

Luminaire Project

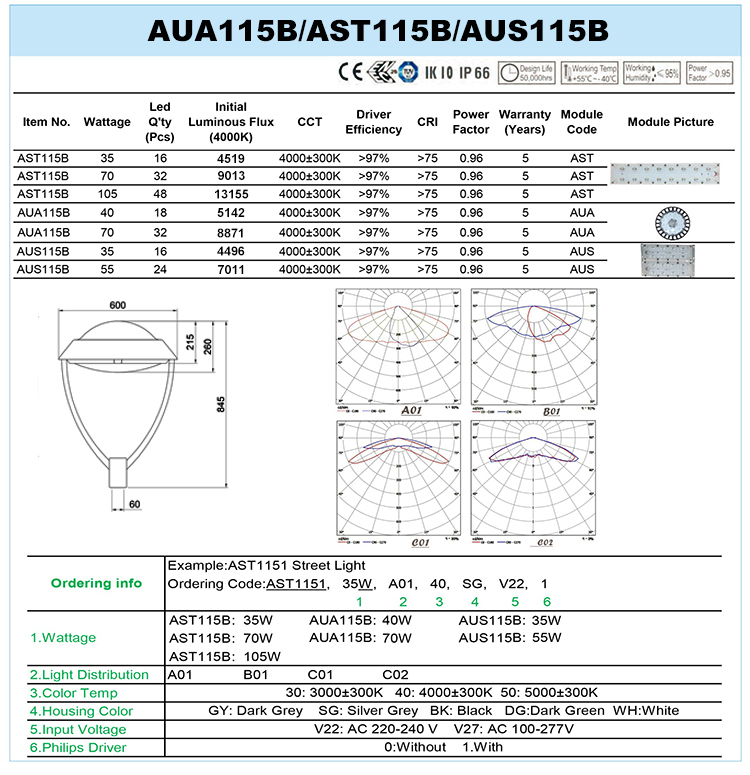

Technical Specifications
