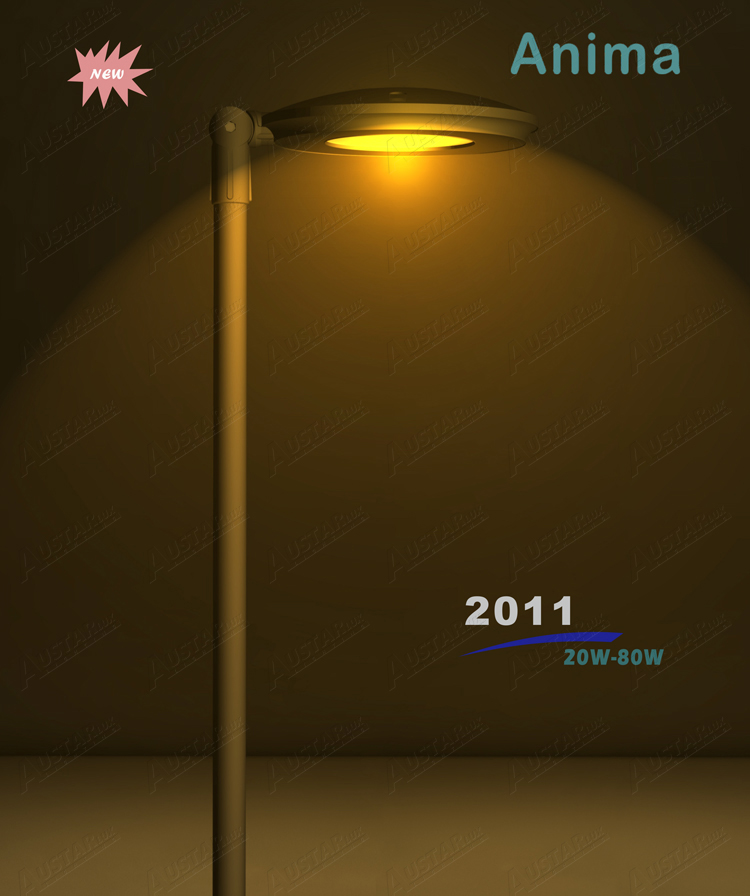

Item:ANIMA 1

SERIES: Anima
MATERIAL: Aluminium body+Tempered glass
INPUT VOLTAGE: 120-277VAC
WORKING CURRENT: 350~1050MA
POWER FACTOR:0.96
LED Q'TY: 08-48pcs of LEDS
TOTAL CONSUMPTION: 16-100W
EFFICACY: >120 Lm/w

LED: Cree XPG3
BEAM PATTERN: C01,B01,A01
COLOR RENDERING INDEX: More than 75
PIPE MOUNTING DIA: 60mm
IP RATING: IP66
WORKING CONDITION: Temperature:-40℃~55℃
Humity:10%~95%
LIFETIME: More than 50,000 hrs











Item:ANIMA 1

SERIES: Anima

MATERIAL: Aluminium body+Tempered glass
INPUT VOLTAGE: 120-277VAC
WORKING CURRENT: 350~1050MA
POWER FACTOR:0.96
LED Q'TY: 08-48pcs of LEDS
TOTAL CONSUMPTION: 16-100W
EFFICACY: >120 Lm/w
LED: Cree XPG3
BEAM PATTERN: C01,B01,A01
COLOR RENDERING INDEX: More than 75
PIPE MOUNTING DIA: 60mm
IP RATING: IP66
WORKING CONDITION: Temperature:-40℃~55℃
Humity:10%~95%
LIFETIME: More than 50,000 hrs










Features

WARRANTY: 5 Years
POWER SAVING: At least 60% Energy Saving
LONG LIFE: LEDs lastfor more than 50,000hrs
(12hrs/day for about 10years)
HEAT DISSIPATION: Patented heat dissipation design,
achieve optinum efficiency
MODULAR DESIGN:Can replace the module directly,
if you want another kind of application
LAB TESTED: National listing lab test in
accordance with IES Standards
SOLID-STATE: High-Shock and High-Vibration Resistant
INSTANT-ON: Light turn on right away,without delay in Re-Stricke
HIGH CRI: 75 CRI enhances all original colors

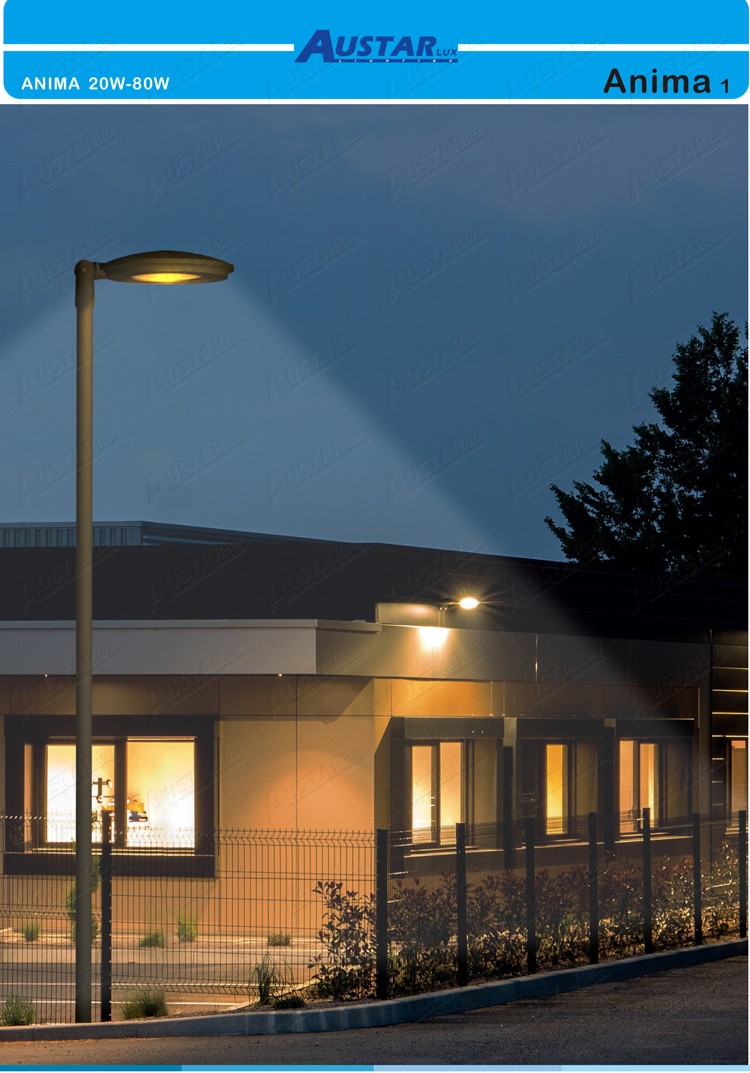

APPLICATION: Rural Road,Commercial Square,Garden,Villa

File Download
  • Luminaire Catalog
  • Luminaire Technical
  • Luminaire CAD Drawing
  • Luminaire IES File
  • Luminaire Video
  • Luminaire Project
